Product advantages

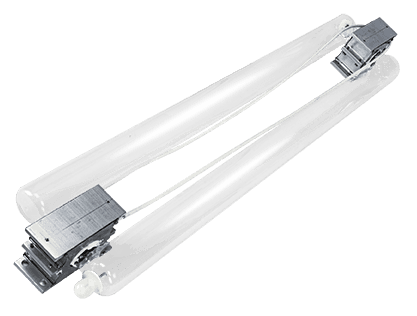

JK UVC Induction Germicidal Lamp System(Water Disinfection)

JK Electrodeless UVC disinfection lamp can be submerged in water directly to enhance the virus inactivation capability while the conventional low-pressure UVC lamp has to be enclosed with quartz sleeve for water disinfection. So the electrodelss induction UV lamp is much more efficient in the water disinfection than the low pressure mercury lamp according to the Inverse square law in the UV dose and distance.The features of high-efficient virus inactivation rate, long lifetime, high power, reliable, eco-friendly and maintenance-free meet the requirements of small, medium and large sizable water treatment applications including utility water, industrial effluent, process water and aquatic breeding.

The optional 200w to 700w high power electrodeless ultraviolet disinfection lamp systems meet the requirements of disinfection systems for all scales of water treatment and purification.

Product features

• Proved and matured technology: The technology exists more than a hundred years and JK has installed millions of visible induction lights globally with high quality and low failure rate.

• Long lifetime: The induction technology uses the frequency induction to drive the lamp. There is no electrode to kill the lamp as conventional regular fluorescent lamp. The lifetime is 100,000 hours and we warrantee 60,000 hours or 5 years.

• No re-lamping in 5 years virtually eliminates the costly down time and maintenance.

• Instant on/off and instant hot restrike eliminate warm-up.

• Extensive suitable ambient temperature range: 0-50℃ (32-122℉).

• No liquid mercury: The technology uses mercury amalgam which is easy to manage.

• Strong UV radiation intensity.

• Pure, high intensity and uniform 253.7 nm radiation: The radiation power at 253.7 nm is around 98% of total emitted UV light.

• Direct submersion in water and direct contact with water without additional quartz protective sleeve for high radiation and disinfection efficiency when in use in water.

• Available power as high as 800W eliminates the need for invasive rows of multiple cables, ballasts, controls and power cabinets.

• Good for tough area where the power supply fluctuates significantly or dirty power occurs.

• Stable output: Output power fluctuates within 3% when supply voltage varies in 10%.

• Sturdy and durable ballast design with military graded electronic components and high quality extruded aluminum housing for maintenance free and low operation cost.

• Optional dimming with 0-10V function for controller with display screen, laptop or mobile phone APP for energy efficiency, smart control and remote control.

• No EMC issue: Compliance of CE Standard 55014.

• Optional supply voltage: 120~277Vac for American market or 220~240Vac for Asian and European market, 50/60Hz.

Applications

• Water disinfection for drinking water, waste water, swimming pool, aquarium, facility and utility water.
